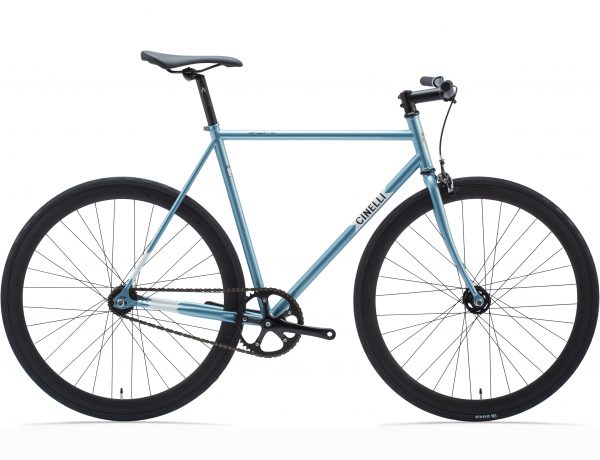

Cinelli 2017 GAZZETTA Komplettrad



The Gazzetta is the high-end fixed gear bike for the city; low maintenance, and incredibly versatile. We optimized the geometries to obtain a new sizing distribution that go from 6 down to 4. The brand new 20 mm riser, 620 mm wide, is a playful trendy way to control your bike change of directions. Preferred by messengers, it’s also a favourite of the ambitious commuter and urban pistard.



COLORE / COLOR
Beyond Blue Eyes
TAGLIE / SIZES
XS (50,5) – S (52,5) – M (55,5) – L (59,5)
SERIE TUBI / TUBE SET
COLUMBUS Cr-Mo Steel Double Butted
PESO TELAIO / FRAME WEIGHT
2000 g size M
FORCELLA / FORK
CINELLI Cr-Mo Steel 1-1/8”
PESO FORCELLA / FORK WEIGHT
725 g
SERIE STERZO / HEAD SET
EC34/28,6 | EC 34/30
DIAMETRO REGGISELLA / SEATPOST DIAMETER
Ø 27,2 mm
ATTACCO / STEM
CINELLI 6061 Ø 31,8 mm

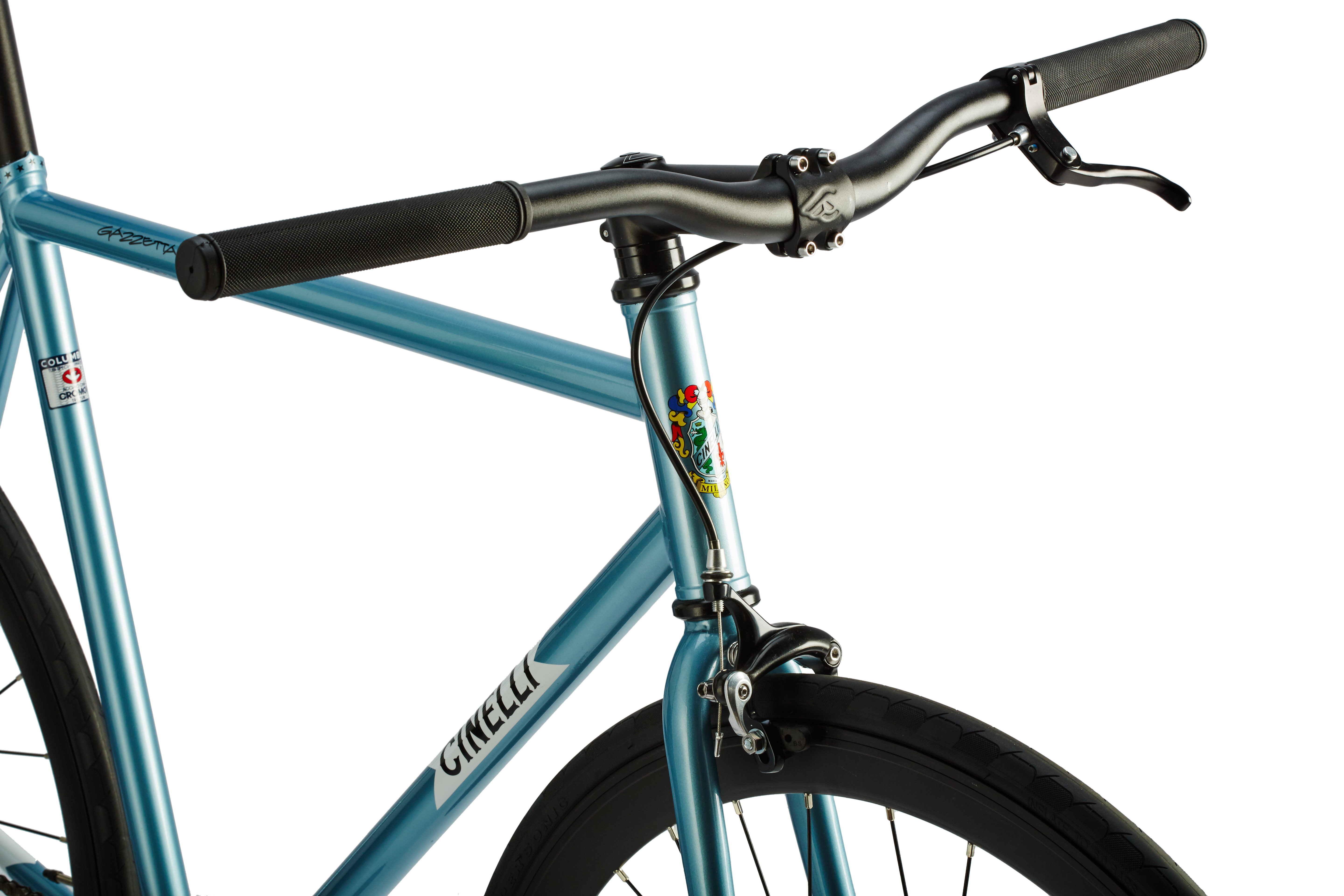

CURVA / HANDLEBAR
CINELLI 20 mm Rise Bar Ø 31,8 mm
REGGISELLA / SEATPOST
CINELLI 6061 Ø 27,2 mm
MANOPOLE / GRIPS
VELO VLG 520
SELLA / SADDLE
VELO VL-1353
GUARNITURA / CRANKSET
LASCO 46T – 170 mm
MOVIMENTO CENTRALE / BOTTOM BRACKET
FSA BB-7420 ST
CATENA / CHAIN
KMC Z510
PIGNONE / COG
17T Fixed Cog / 18T Freewheel (incluso non assemblato)
LEVE FRENI / BRAKE LEVERS
PROMAX 249A
FRENI / BRAKES
PROMAX RC-452
RUOTE / WHEELS
A-RIM S4219 Rims – KT Hubs Fix/Free Flipflop
GOMME / TYRES
DURO Hypersonic 700 x 25 mm
PEDALI / PEDALS
WELLGO R110

Cinelli 2017 ‚TIPO PISTA‘ Komplettbike / Bahnrad / Singlespeed / Fixed Gear.

bildschirmfoto-2016-12-01-um-14-43-31bildschirmfoto-2016-12-01-um-14-43-49

bildschirmfoto-2016-12-01-um-14-44-14

COLORE / COLOR
Ashes to Ashes TAGLIE / SIZES
XS (47) – S (50) – M (53) – L (56)
SERIE TUBI / TUBE SET
COLUMBUS Alloy Custom PESO TELAIO / FRAME WEIGHT
1650 g size M
FORCELLA / FORK
COLUMBUS Carbon/Alloy 1-1/8” PESO FORCELLA / FORK WEIGHT
560 g
SERIE STERZO / HEAD SET
IS 42/28,6 – IS 42/30 DIAMETRO REGGISELLA / SEATPOST DIAMETER
Ø 27,2 mm
DERAGLIATORE ANTERIORE / FT. DERAILLEUR
Clamp-on ATTACCO / STEM
CINELLI 6061 Ø 31,8 mm
CURVA / HANDLEBAR
CINELLI 6061 Ø 31,8 mm REGGISELLA / SEATPOST
CINELLI 6061 Ø 27,2 mm
NASTRO / TAPE
CINELLI Velvet Logo Ribbon SELLA / SADDLE
CINELLI VL-1319A
GUARNITURA / CRANKSET
LASCO 48T – 165 mm MOVIMENTO CENTRALE / BOTTOM BRACKET
FSA BB-7420 ST
CATENA / CHAIN
KMC Z510 PIGNONE / COG
17T Fixed Cog
LEVE FRENI / BRAKE LEVERS
PROMAX 160A FRENI / BRAKES
PROMAX RC-452
RUOTE / WHEELS
JALCO MRX24 Rims – KT Hubs Fix/Free Flipflop GOMME / TYRES
DURO Hypersonic 700×25 mm

geometrie_tipopista_2017

The geometries of the frame, made with Columbus Custom alloy tubes and an alu/carbon fork, guarantee balance, responsiveness and stiffess that are perfect for riding up on the banking for a fast lap, as well as vertical angles and small rake make the bike agile without overlapping on the road, and 25mm tires help soften the pavement disconnections.

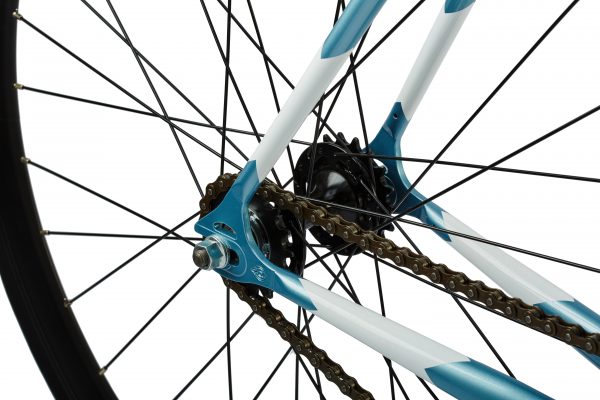

The extralong dropouts (120 mm) made out of stainless steel, is designed to easily change gear ratio according to the different needs. Indeed you just have to change the pinion and find the perfect chain tension simply using the dropout length.

Tipo Pista comes with both front and rear brakes to be used on every road.
